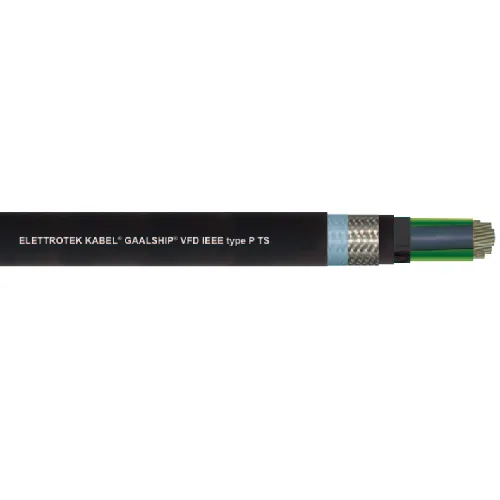

1 AWG 3C 10G3 TC Shielded Armour Al Tape XLPO GAALSHIP VFD IEEE Type P TS 2KV Offshore Cable
Allowable Ampacity for 1 AWG 3C 10G3 TC Shielded Armour Al Tape XLPO GAALSHIP VFD IEEE Type P TS 2KV Offshore Cable: 100 Amps
About:
The 1 AWG 3C 18G3 TC Shielded Armour Al Tape XLPO GAALSHIP VFD IEEE Type P TS 2KV Offshore Cable is a specialized cable designed for offshore applications, particularly in harsh environments where reliability and durability are essential.
Also Known As:
• GAALSHIP Offshore Cable
• TC Shielded Armour Al Tape XLPO VFD Cable
• IEEE Type P TS 2KV Offshore Cable
Application:
• Offshore drilling platforms: Used for power distribution and control systems on oil rigs and offshore platforms.
• Marine vessels: Employed in ships, boats, and other marine vehicles for various electrical applications.
• Subsea installations: Utilized for underwater equipment and systems, including underwater sensors and control devices.
• Oil and gas industry: Found in refineries, petrochemical plants, and other facilities for power and control applications in hazardous areas.
Standards:
• IEEE (Institute of Electrical and Electronics Engineers) Standards: Compliant with IEEE standards, ensuring compatibility and performance in electrical systems.
• Type P TS: Refers to IEEE Type P (Pipe Cable) for use in hazardous locations, suitable for installations in environments with flammable gases or vapors.
• 2KV (2000 Volts) Rating: Rated for 2000 volts, suitable for medium-voltage applications in offshore environments.
• Other relevant industry standards: May comply with additional standards specific to offshore and marine applications, such as API (American Petroleum Institute) standards.
Construction:
• Conductor: Flexible tinned copper conductor, acc. to IEEE 1580 table 11v
• Insulation: Special cross-linked polyolefin, acc. to IEEE type P and UL 1309/CSA 245 type X110
• Cores Color: Gray whit printed phase I.D. (black/white/red)
• Earth conductor: Soft annealed tinned flexible stranded copper, acc. to IEEE 1580 table 11
• Insulation: Insulated and sized acc. to UL 1277
• Cores Color: Green
• Inner Sheath: Thermosetting compound, acc. to UL 1309/CSA 245 and IEEE 1580
• Armouring: Tinned copper braid and aluminium/polyester tape to be used for EMI shield and mechanical protection
• Outer Sheath: black, thermosetting compound, acc. to UL 1309/CSA 245 and IEEE 1580
Features:
• Oil abrasion, chemical, moisture, cold resistant
• Sunlight resistant
• Suitable for use in Class I, Div. 1 and Zone 1 environments
• Highest ampacity ratings:
ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C
• NVE 95/16996, FAL
• Transport Canada
• Det Norske Veritas (DNV)
• Lloyd’s register of shipping (LRS)
• American Bureau of Shipping (ABS)
• UL listed as Marine Shipboard Cables
• UL listed type TC
• United States Coast Guard November 2, 1987
Specifications:
• No. of cores x cross section n x AWG/MCM: 3x1 3G10
• Ø under armour ca. inches ± 10%: 1,341
• Outer-Ø ca. inches ± 10%: 1,509
• Nominal Voltage: 2 kV
• Temperature Range: - 40°C up to 110°C
• Cable Weight approx. lbs/MFt.: 1851
• Part Number: 2602017K037A01
