Product Details

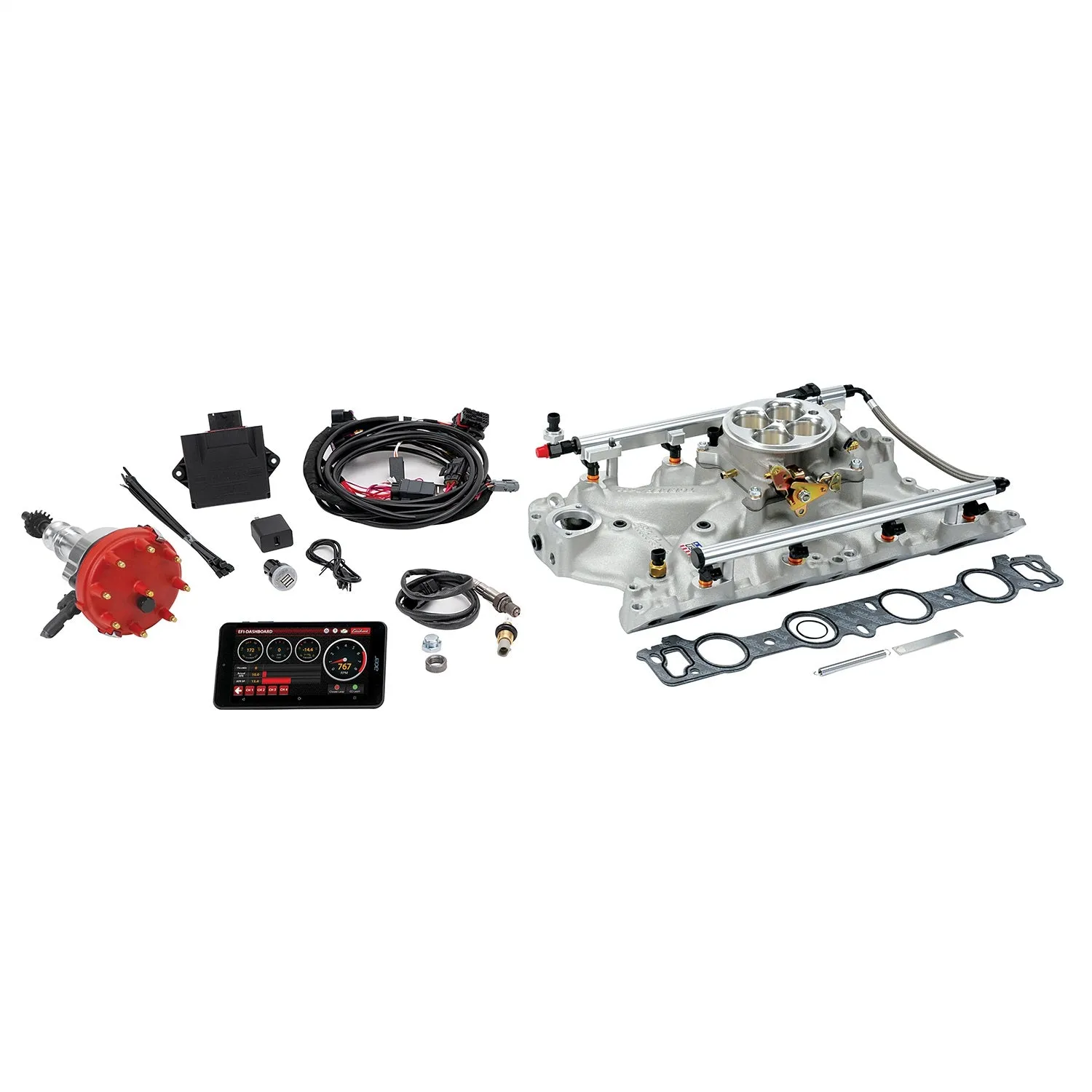

The new Pro-Flo 4 EFI System #35680 for Ford 429/460 engines is an advanced sequential-port electronic fuel injection for the 385-series big-blocks manufactured from 1968 through 1987. This EFI is a direct bolt on and incorporates a single-plane Victor-style intake manifold with a square-bore 4150-style throttle body. The Pro-Flo 4 EFI #35680 is compatible with factory-style cylinder heads but optimized for use with Edelbrock Performer and Victor Jr. heads. The Pro-Flo 4 manifold comes preassembled and ready to run with throttle body, 42 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential direct-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 625 horsepower at 43 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet included for a streamlined installation. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.



Specifications:

Bore Diameter 1.75
Description_ABR ProFlo4 EFI
Description_ASM Ford:Big-Block:429 (7.0L )-460 (7.5L)
Description_DEF Fuel Injection System
Description_DES FUEL INJECTION
Description_EXT Edelbrock Pro-Flo 4 EFI System #35680 for Ford 429/460 engines is an advanced sequential-port electronic fuel injection for the 385-series big-blocks manufactured from 1968 through 1987.
Description_EXT The new Pro-Flo 4 EFI System #35680 for Ford 429/460 engines is an advanced sequential-port electronic fuel injection for the 385-series big-blocks manufactured from 1968 through 1987.
Description_FAB Complete Engineered System For The Ultimate In Performance
Description_FAB New ECU Preloaded w/80 Dyno-Tuned Calibrations
Description_FAB Self Learning EFI System
Description_INV Pro-Flo 4 EFI #35680 for Ford 429-460 BB
Description_KEY Pro-Flo 4 EFI; Electronic Fuel Injection; Sequential Port EFI; Direct-port EFI; Edelbrock; Edelbrock EFI; Ford; Ford Big-Block; 385 series engine; Ford Performance; Ford 429; Ford 460; Cobra Jet; Super Cobra Jet; 460 Police Cruiser; TBI; Throttle Body Inj
Description_LAB Pro-Flo 4 EFI Traditional 4150-Style Kit #35680 For BB Ford 429-460
Description_LAB Pro-Flo 4 EFI Traditional 4150-Style Kit #35680 For Ford Big-Block 429/460
Description_MKT The Edelbrock Pro-Flo 4 EFI Kit #35680 for Ford big-block 429-460 engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors, wire harnesses and ECU are included along with a full-color installation manual. The Super Victor EFI manifold is designed with a larger cross-sectional area in the plenum with longer runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 Lb/Hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Description_MKT The new Pro-Flo 4 EFI System #35680 for Ford 429/460 engines is an advanced sequential-port electronic fuel injection for the 385-series big-blocks manufactured from 1968 through 1987. This EFI is a direct bolt on and incorporates a single-plane Victor-style intake manifold with a square-bore 4150-style throttle body. The Pro-Flo 4 EFI #35680 is compatible with factory-style cylinder heads but optimized for use with Edelbrock Performer and Victor Jr. heads. The Pro-Flo 4 manifold comes preassembled and ready to run with throttle body, 42 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential direct-port injection and infinite control over ignition and fuel events under all conditions. This system is rated for 625 horsepower at 43 PSI with all supporting sensors, ECU, wire harnesses and 7-inch Android tablet included for a streamlined installation. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Description_SHO { Sellable : Yes }
Description_SHP { eo : 7in.}
Description_TRA This Pro-Flo 4 system for the Ford 429/460 requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35680 is 4.25 inches.
Description_TRA This Pro-Flo 4 system for the Ford 429/460 requires a high-pressure; EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35680 is 4.25 inches.
Distributor Cap Included Yes
finish Satin
Flange Type 4150
Fuel Injector Type 42 lb/hr
Fuel Pressure Port 1/8-27 NPT
Gasket Or Seal Included Yes
height 10.25
length 27.75
LTL N
Manifold Height 4.25
Maximum Horsepower 675
Quantity Kit
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type Traditional 4150-Style Kit
Throttle Body Type 4 Barrel
weight 47.0
width 24.0
Wire Harness Included Yes
Wiring Harness Included Yes
Edelbrock 35680 { Sellable : Yes }
