Product Details
+
When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar!
Specifications:
Bore Diameter | 1.75 |
Cylinder Head Type | Sequential Port |
Description_ABR | PF4 EFI KIT |
Description_ASM | Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
Description_DEF | Fuel Injection System |
Description_DES | FUEL INJECTION |
Description_EXT | Edelbrock Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 42 Lb/Hr injectors capable of 675 HP. |
Description_EXT | PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT SBC 1986/EARLIER 675 HP MAX 42 LbHr INJECTORS W/OUT TABLET |
Description_FAB | Complete Engineered System For The Ultimate In Performance |
Description_FAB | Even fuel distribution to each cylinder |
Description_FAB | Most complete kit available includes an Edelbrock EFI distributor Direct-port design features injectors in each runner |
Description_FAB | New ECU Preloaded w/80 Dyno-Tuned Calibrations |
Description_FAB | No laptop tuning required |
Description_FAB | Self Learning EFI System |
Description_FAB | Single-plane EFI manifold comes preassembled |
Description_INV | Edelbrock Pro-Flo 4 EFI Kit W/O Tablet |
Description_INV | FUEL INJECTION |
Description_LAB | Pro-Flo 4 EFI Traditional 4150-Style Kit #356900 For SB Chevrolet W/O Tablet |

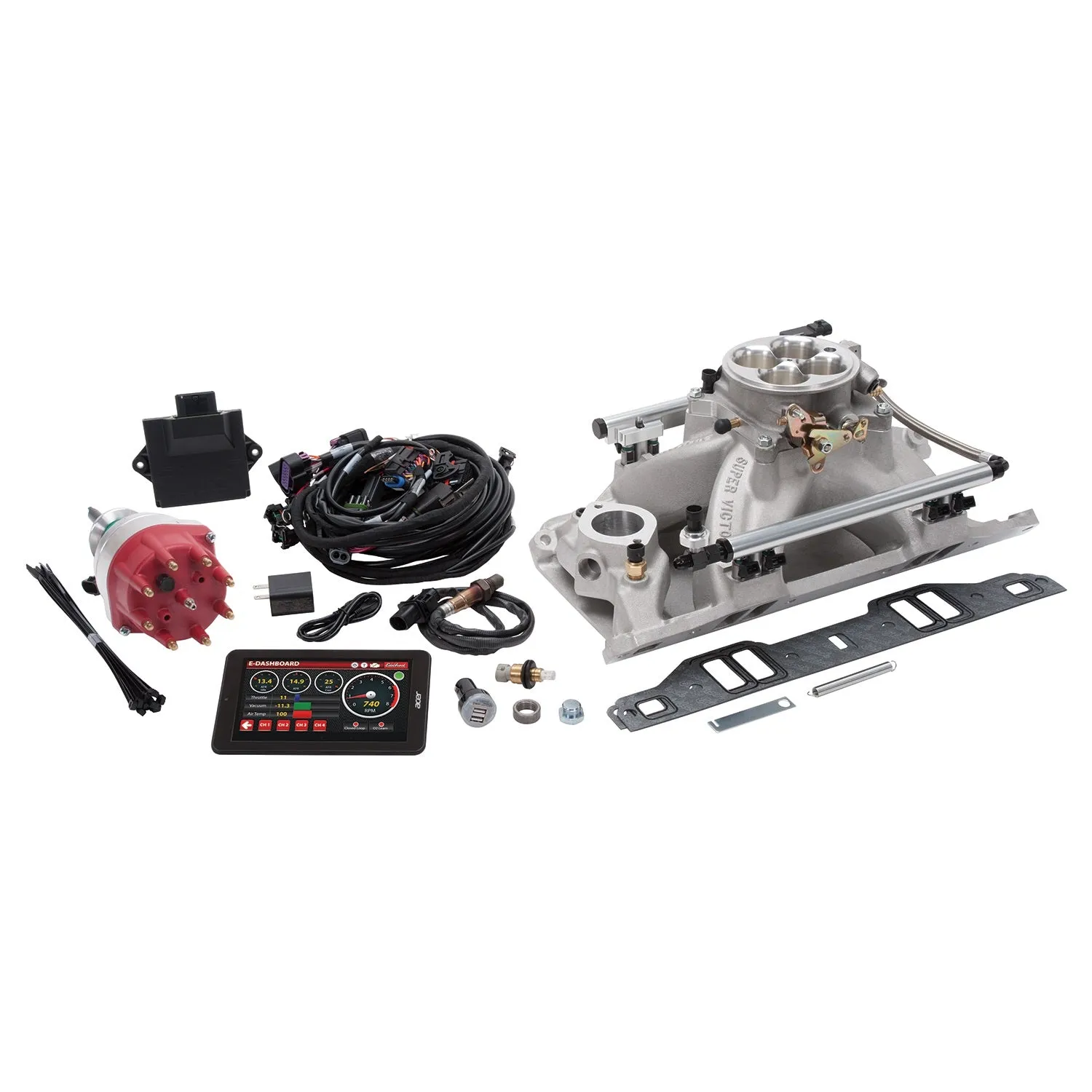

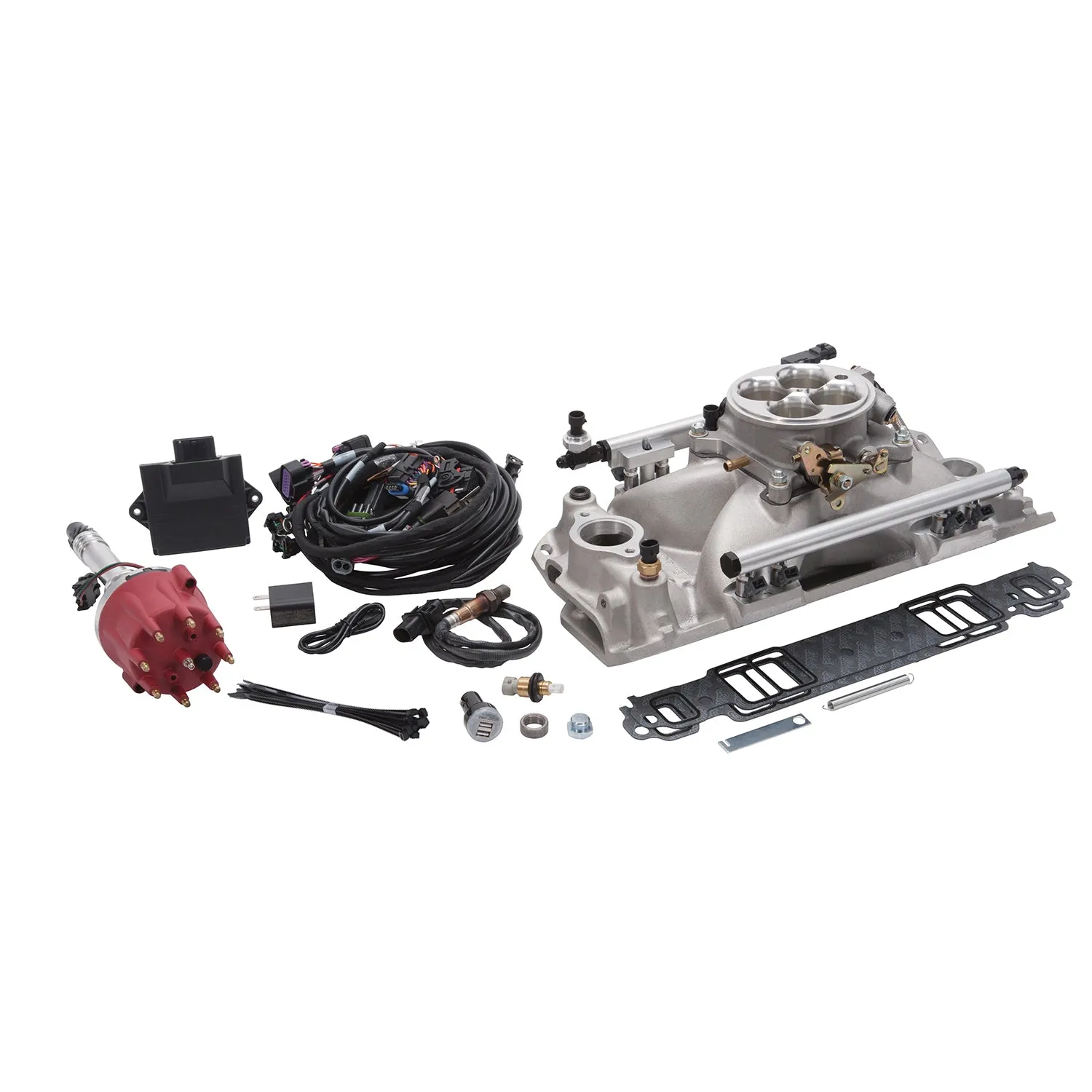

Description_MKT | The Edelbrock Pro-Flo 4 EFI Kit W/O Tablet #356900 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. This kit does not include the hand-held tuner. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. This kit does not include the hand-held tablet. For the complete kit with Android-based tablet and E-Tuner Calibration app, order kit #35690. |
Description_MKT | When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar! |
Description_SHO | FUEL INJECTION |
Description_TRA | This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35690/356900 manifold height: 4.58". Throttle body height: 2.530" |
Distributor Cap Included | Yes |
Engine Make/Size | Chevy Small Block (262-400) |
finish | Satin |
Flange Type | 4150 |
Fuel Injector Type | 42 lb/hr |
Fuel Pressure Port | 1/8-27 NPT |
Fuel Rate | 42 lbs./hr |
Gasket Or Seal Included | Yes |
height | 10.312 |
length | 30.188 |
Manifold Height | 4.58 |
Maximum Horsepower | 675 |
Quantity | Kit |
RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
System Type | Traditional 4150-Style Kit |
Throttle Body Type | 4 Barrel |
WARNING CA Proposition 65 | Yes |
WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
weight | 43.0 |
width | 25.25 |
Wire Harness Included | Yes |
Wiring Harness Included | Yes |
