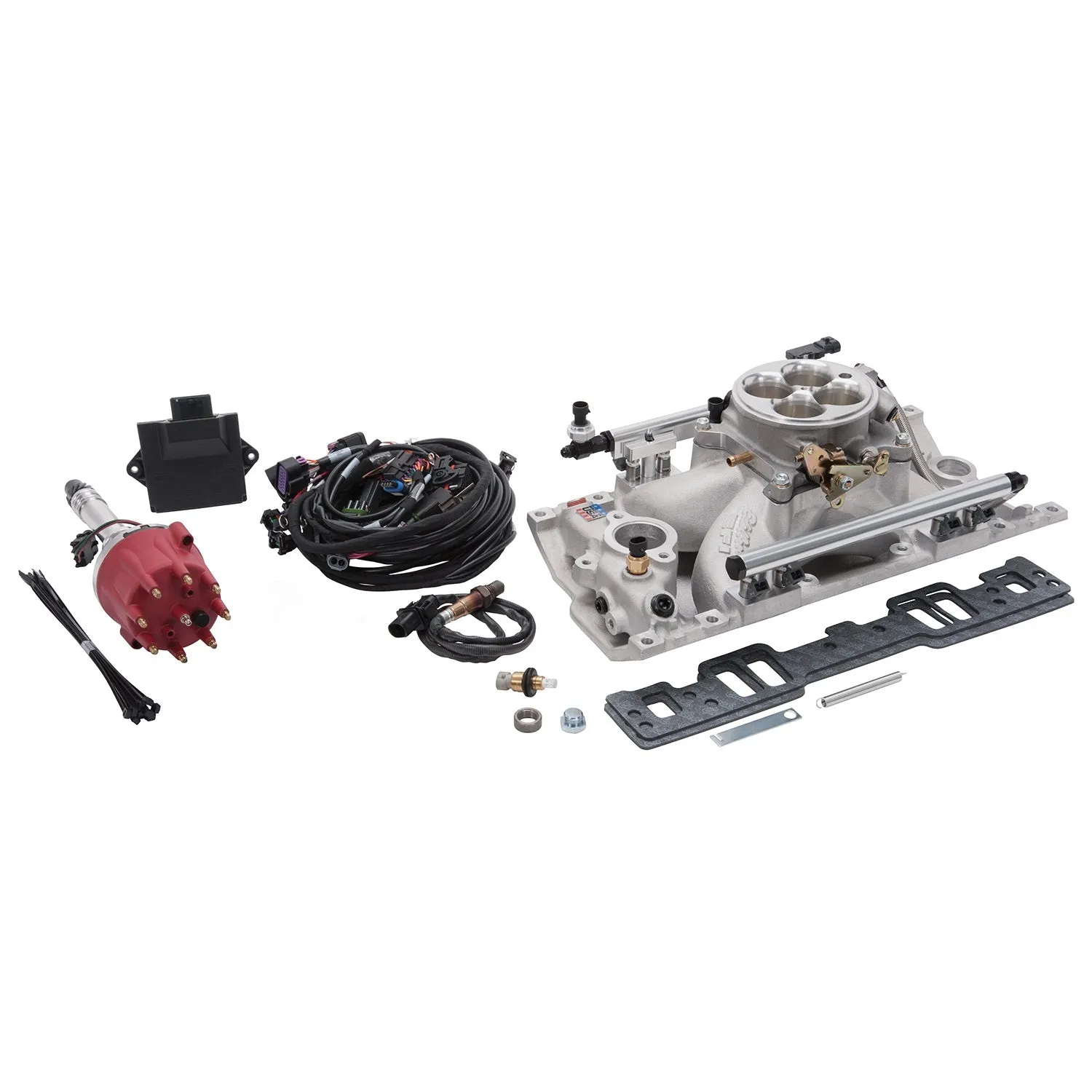

The Edelbrock Pro-Flo 4 EFI Kit #357800 W/O Tablet for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.

Specifications:

Bore Diameter	1.75
Cylinder Head Type	GM Vortec/Edelbrock E-TEC
Description_ABR	EFI System
Description_ASM	Chevrolet:Small-Block Gen I Vortec:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Description_DEF	Fuel Injection System
Description_DES	FUEL INJECTION
Description_EXT	Edelbrock Pro-Flo 4 EFI kit for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI kit comes with a satin 4150-Style single plane intake & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. No Tablet Included.
Description_EXT	Edelbrock Pro-Flo 4 EFI kit for Small-Block Chevy with Vortec/E-Tec Cylinder heads. The EFI kit comes with a satin 4150-Style single plane intake 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. No Tablet Included.
Description_FAB	Complete Engineered System For The Ultimate In Performance
Description_FAB	New ECU Preloaded w/80 Dyno-Tuned Calibrations
Description_FAB	Self Learning EFI System
Description_INV	Edelbrock Pro-Flo 4 EFI System #357800
Description_KEY	Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Chevy; Chevrolet; Small-Block; Vortec; E-Tec; 357800; Holley EFI; FiTech EFI; FAST Fuel Air Spark Technology EFI; MSD EFI; TBI EFI; Throttle Body EFI
Description_LAB	Pro-Flo 4 EFI 4150-Style #357800 For Chevy SB W/ Vortec/E-Tec Heads W/O Tablet
Description_LAB	Pro-Flo 4 EFI 4150-Style #357800 For Chevy SB W/Vortec/E-Tec Heads W/O Tablet
Description_MKT	The Edelbrock Pro-Flo 4 EFI Kit #357800 W/O Tablet for Small-Block Chevy engines with Vortec/E-Tec cylinder heads is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 29 lb/hr injectors and is rated for 450 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 5in.}
Description_TRA	Pro-Flo 4 EFI system #357800 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #357800 is 4.63 inches.
Description_TRA	Pro-Flo 4 EFI system #357800 for the Chevy SB with Vortec/E Tec Cylinder Heads requires a high-pressure; EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #357800 is 4.63 inches.
Distributor Cap Included	Yes
Engine Make/Size	Chevy Small Block (262-400)
finish	Satin
Flange Type	4150
Fuel Injector Type	29 lb/hr
Fuel Pressure Port	1/8-27 NPT
Fuel Rate	29 lbs./hr
Gasket Or Seal Included	Yes
height	10.5
length	30.12
Manifold Height	4.58
Maximum Horsepower	450
Quantity	Kit
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type	Traditional 4150-Style Kit
Throttle Body Type	4 Barrel
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	34.0
width	25.12
Wire Harness Included	Yes
Wiring Harness Included	Yes
