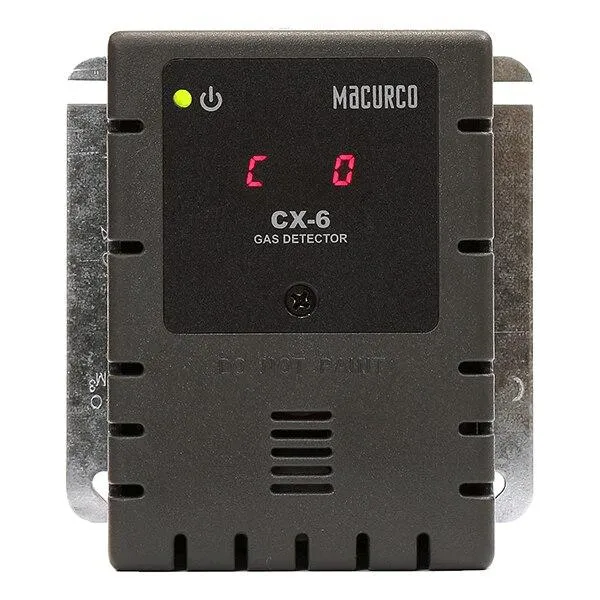

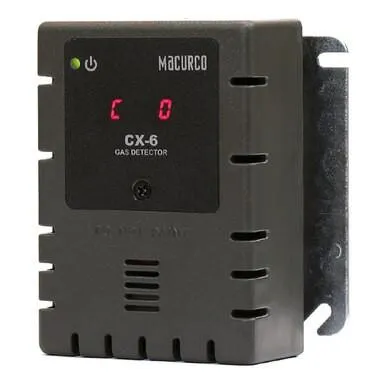

Macurco Dual CO/NO2 Fixed Gas Detector Controller Transducer provides Carbon Monoxide and Nitrogen detection in commercial facilities. The CX-6 Low Voltage and CX-12 Line Voltage monitor can be used as a stand-alone detector and controller and as an analog transducer for use with Macurco control panels and other systems.

Applications: Parking Garages, Loading Docks, Warehouses, Car Dealerships, distribution Centers/Warehousing and any Vehicle Exhaust-Based applications

Key Features:

• Choice of Low Voltage (12-24 VAC or 12-32 VDC input) or Line Voltage (100-240 VAC input)
• Replacaeable Sensors
• 5A SPDT Fan control relay
• 0.5A N.O. or N.C. Alarm Relay
• Selectable Fan and Alarm Relay Actuation Settings
• Digital Display for CO & NO2, Internal Buzzer
• Coverage Area: 5,000 sq. ft.
• 4-20mA current loop
• International Code Council ICC 2018, section 404.1 compliant
• Made in the USA

Product Number:

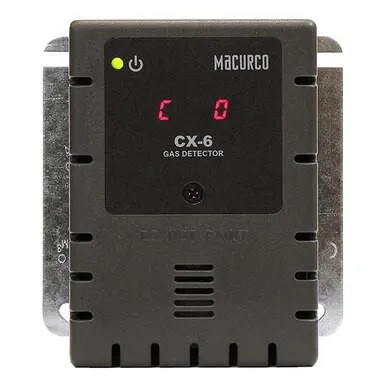

CX-6 - Low Voltage (12-24 VAC or 12-32 VDC)

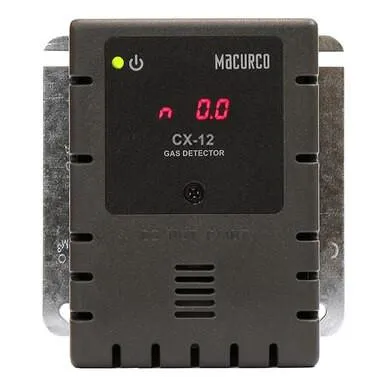

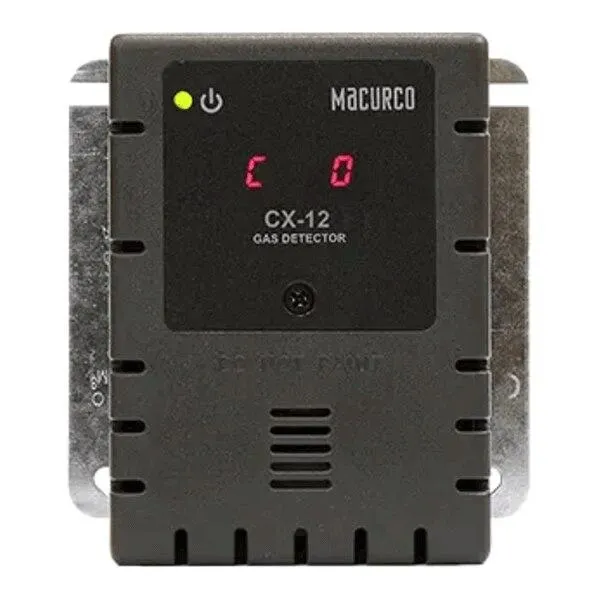

CX-12 - Line Voltage (100-240 VAC)
