Product Details
＋

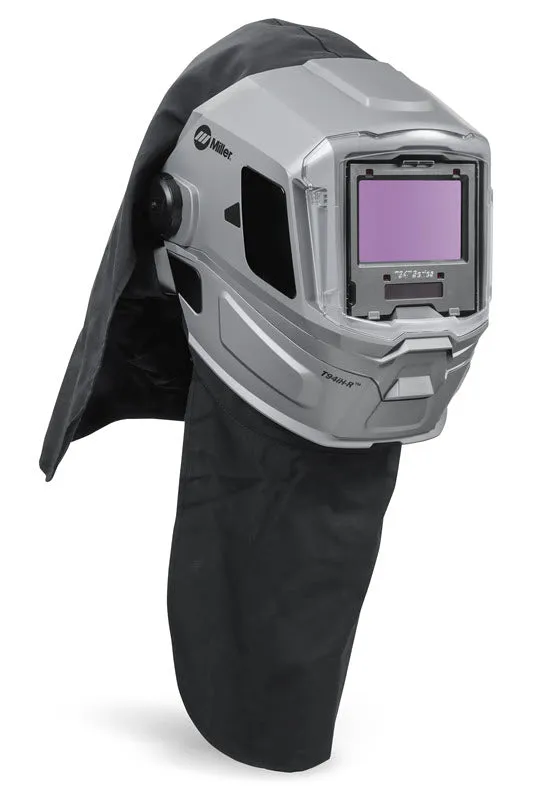

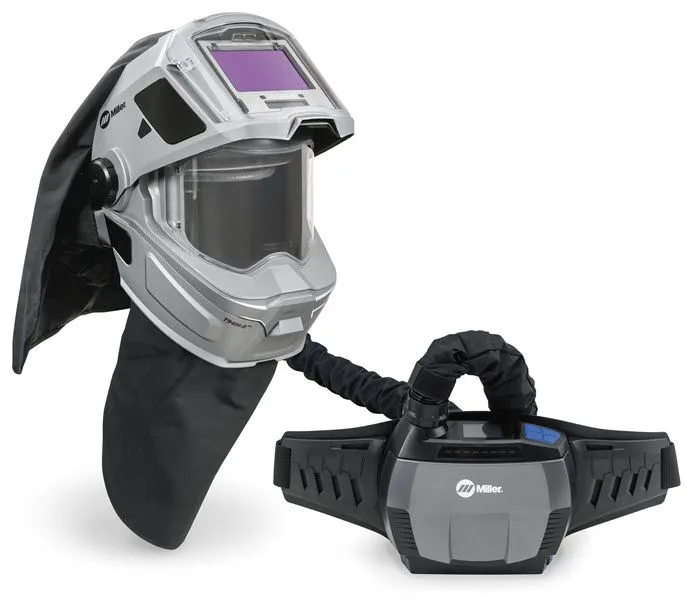

Miller® Hard Hat PAPR II with T94iH-R™ Auto Dark Welding Helmet 287510
The Miller® Hard Hat PAPR II (Powered Air Purifying Respirator) with T94iH-R™ welding helmet comes complete with integrated MSA V-Guard® hard hat. The T94iH-R welding hood features built-in High-Definition View (HDV) grinding shield, Miller's ClearLight™ 2.0 lens technology and Dualtec™ air manifold. The ClearLight™ 2.0 auto-darkening lens offers ultra-clear optics with more realistic color hues in both light and dark states. Patent-pending Dualtec™ air manifold has six-point air distribution system that increases perceived cooling and operator comfort. High-Definition View grinding shield and welding lens cover provide a sharp, detailed view of the work piece at any angle, with minimal distortion.

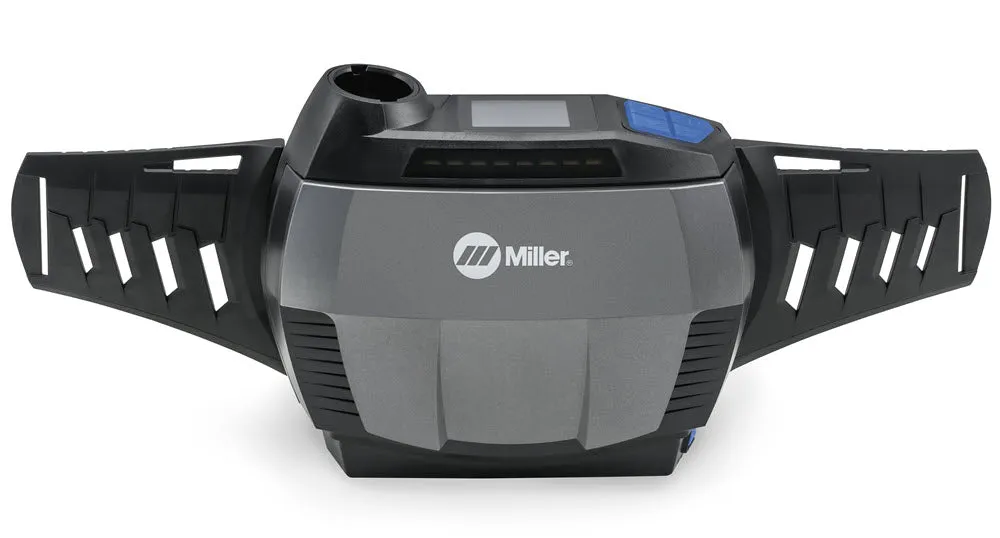

The Gen. II PAPR blower motor weighs only 3 lbs. and has three air speeds to better customize the user experience. Innovative shoulder straps help to evenly distribute the weight of the unit for more comfort and less fatigue. Audible and vibrating alarms alert user to low battery and reduced air flow. The HEPA filter captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust. The system comes complete with blower assembly, HEPA filter, six pre-filters, spark guard, breathing tube, breathing tube cover, padded belt, comfortable shoulder straps, two lithium-ion batteries, battery charger, flowmeter, tool bag and T94iH-R helmet assembly with MSA V-Guard® hard hat.
Process
Applications
Construction
Manufacturing
Fabrication
Stainless Steel
Flux Cored
Features

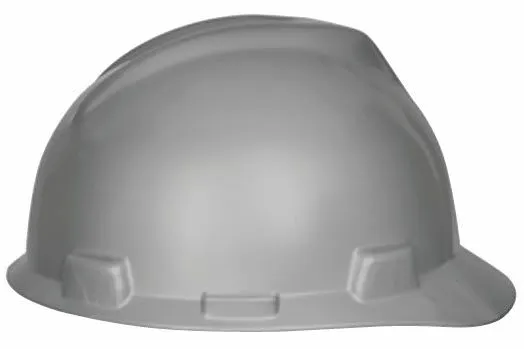

Provides ANSI/ISEA Z89.1 & CSA Z94.1 certified protection against impact from overhead hazards.
6-point airflow distribution system maximizes perceived cooling through targeted air placement.
Provides all day comfort and reduces fatigue. Gen. 2 blower weight is just 3 lbs.
Distribute weight to provide a more comfortable and secure fit.
Allow user to adjust the volume of air to maximize comfort in varied work conditions.
Captures airborne particles as small as 0.3 microns and filters out weld fumes, mists and dust.
Clearly displays fan speed, filter level, battery level and time of day.
Notify user of low battery and low airflow
Reduces interference and allows for unrestricted movement.
Provides up to 10 hours of battery life with no memory retention from frequent charging.
Two batteries are included with package.
Provides easy adjust ability to accommodate space restraints
Protects breathing tube from sparks and abrasion for extended life
With ultra-soft outer cuff enhances wear without causing skin irritation. Unique design can provide additional protection by covering the ears, or ease communication if placed in front of the ears.
Provides advanced, high-definition optics for the most realistic view that's clearer and brighter - before, during and after every weld.
Provides a sharp detailed view at any angle with minimal distortion. This is found in the cover lens and the grind shield.
Protects the digital lens in high amperage applications
Keeps helmet and user cool
Enhance peripheral vision, amplifying sense of surroundings.

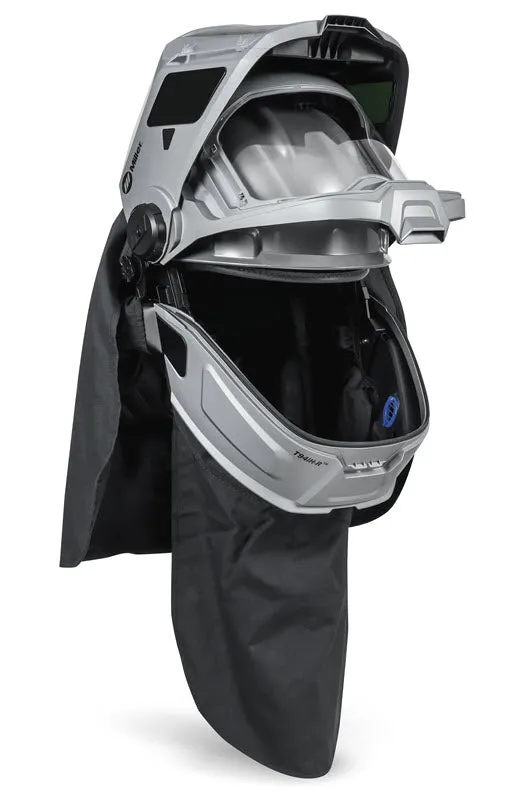

Improves communication, allowing operator to have access to face without removal of the head assembly.
Provides easy access for front cover lens changes
- Weld Mode™ Shades #8 - 13
- Cut Mode™ Shades #5 - 8
- Grind Mode - Light State #3
- X-Mode™ Shades #8 - 13
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
Provides fine shade adjustment for optimized comfort and vision.
Allows for monitoring of arc time and arc count
Allow for precise lens adjustments based on the environment
Easily allow welder to make precise lens adjustments to shade, delay and sensitivity.
For easy switching between two preset customized memory settings.
Up to 3,000 hours of life
Most up-to-date safety standard
Provides exceptional comfort, reducing pressure points while increasing stability.
T94iH-R™ Specs
PAPR 2 Specs
Comes complete with
