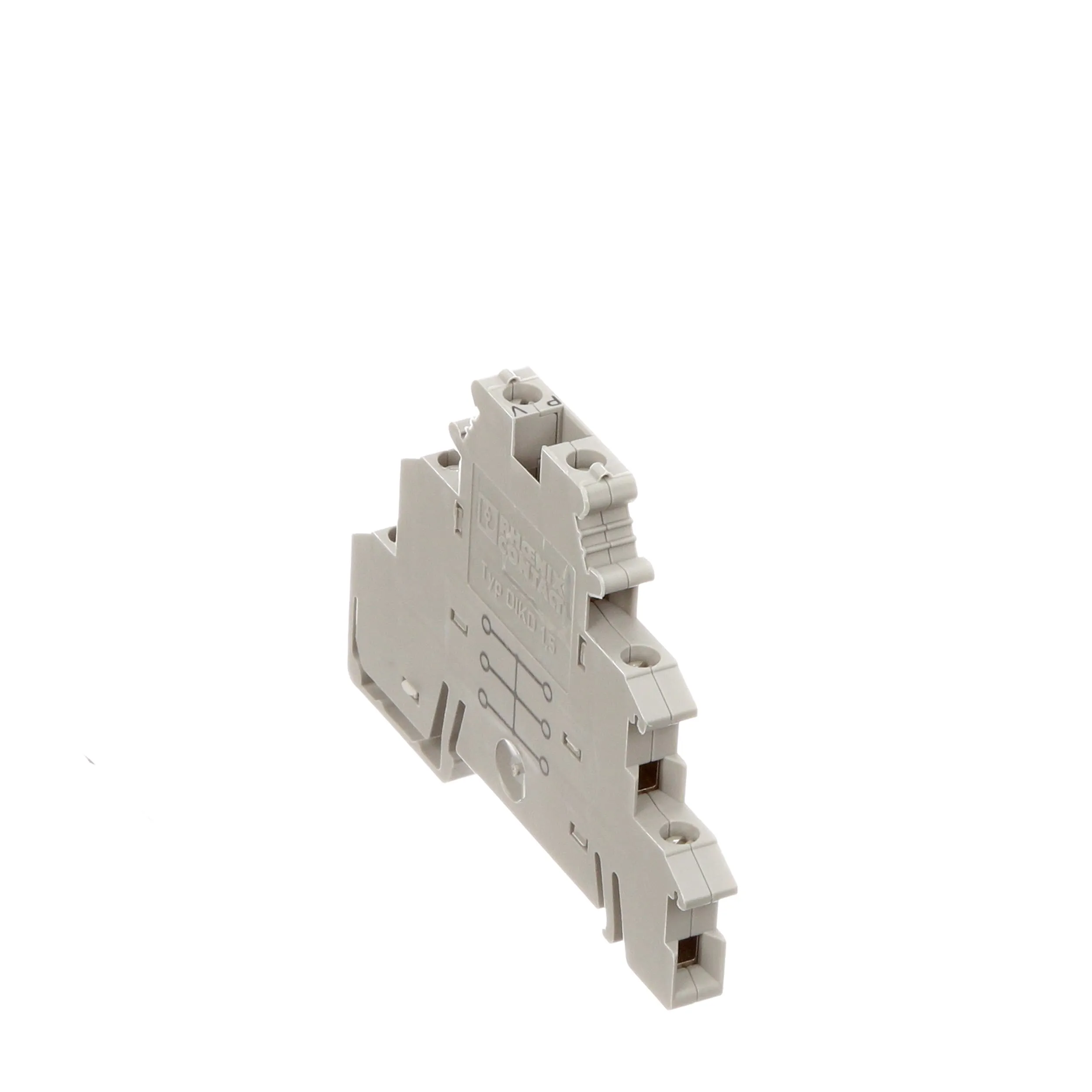

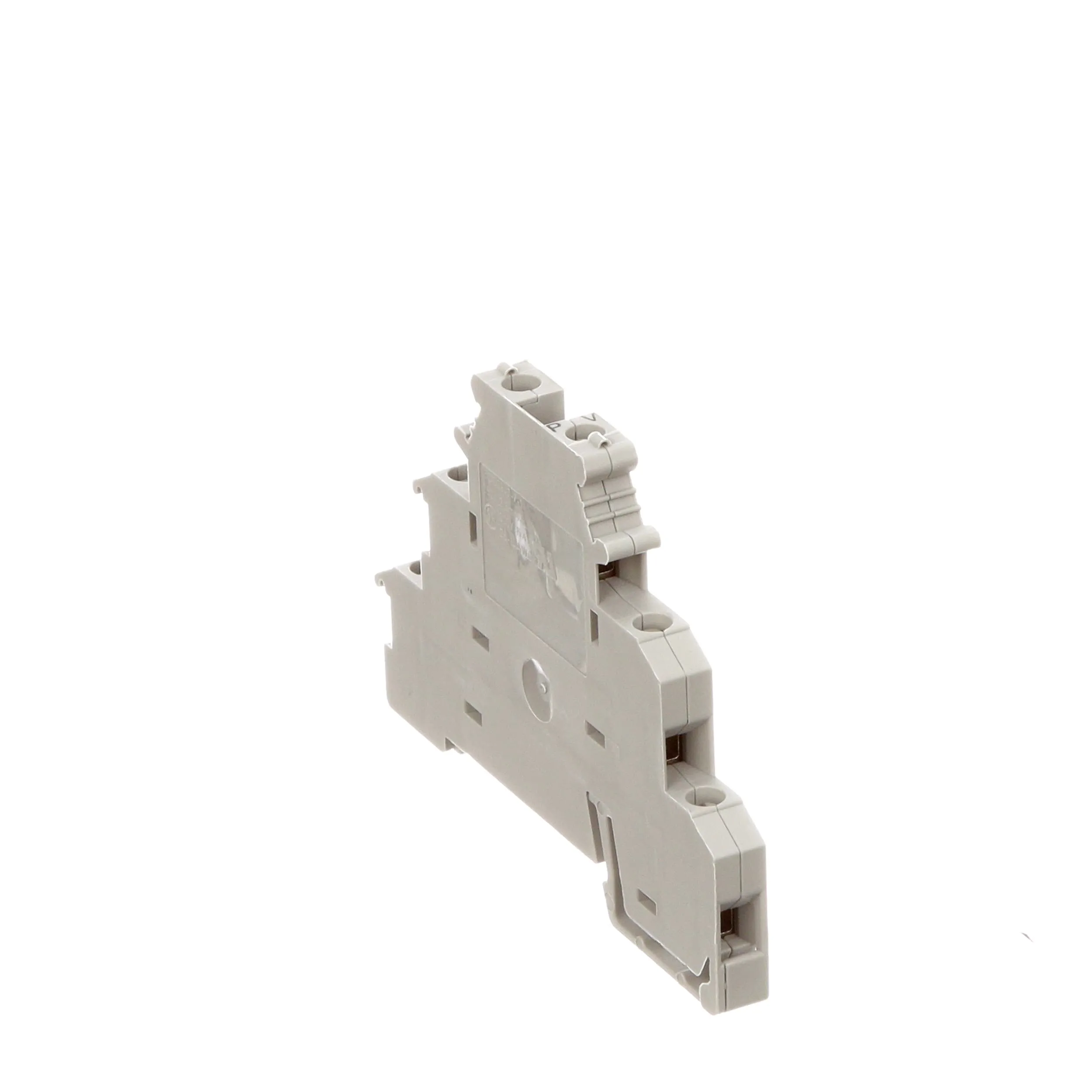

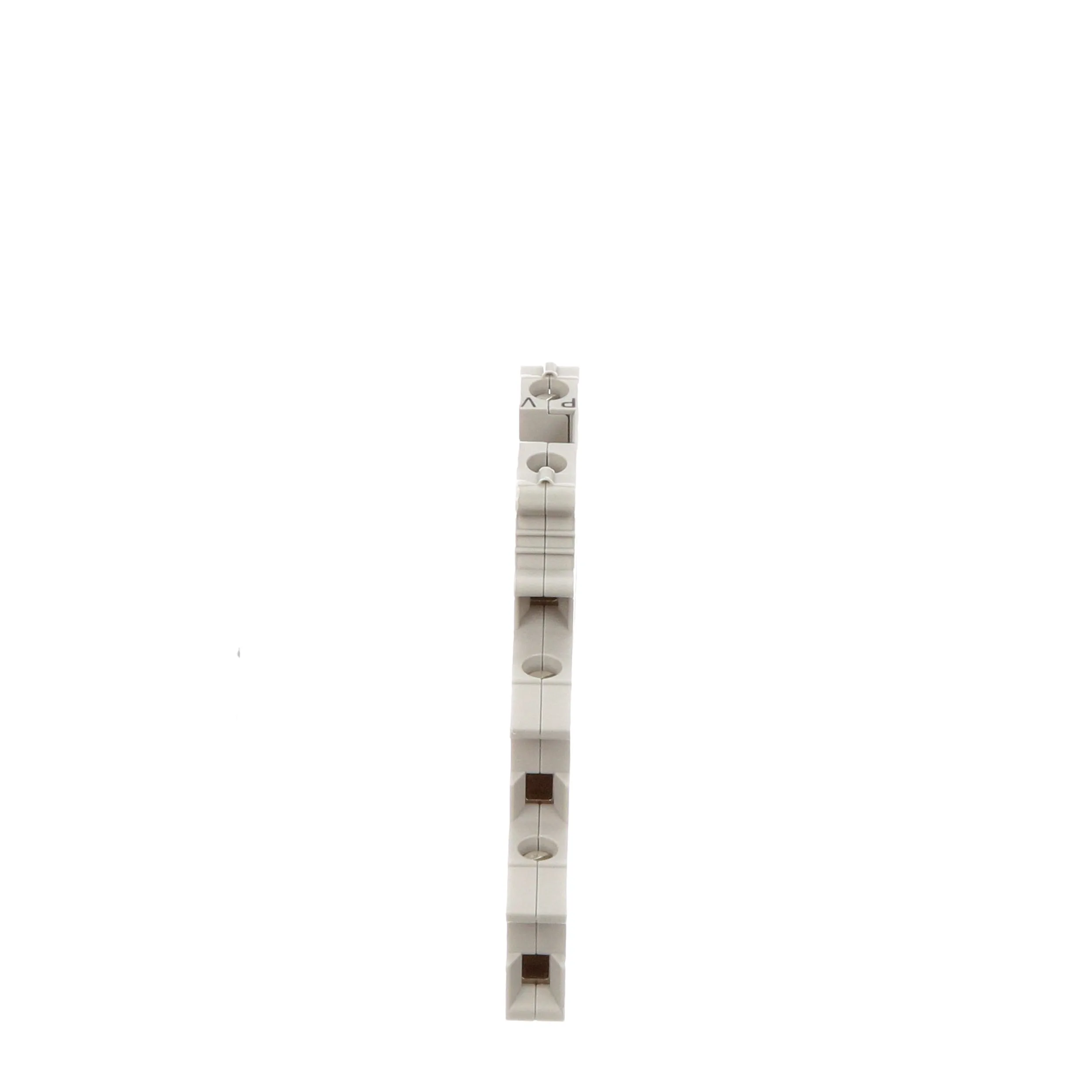

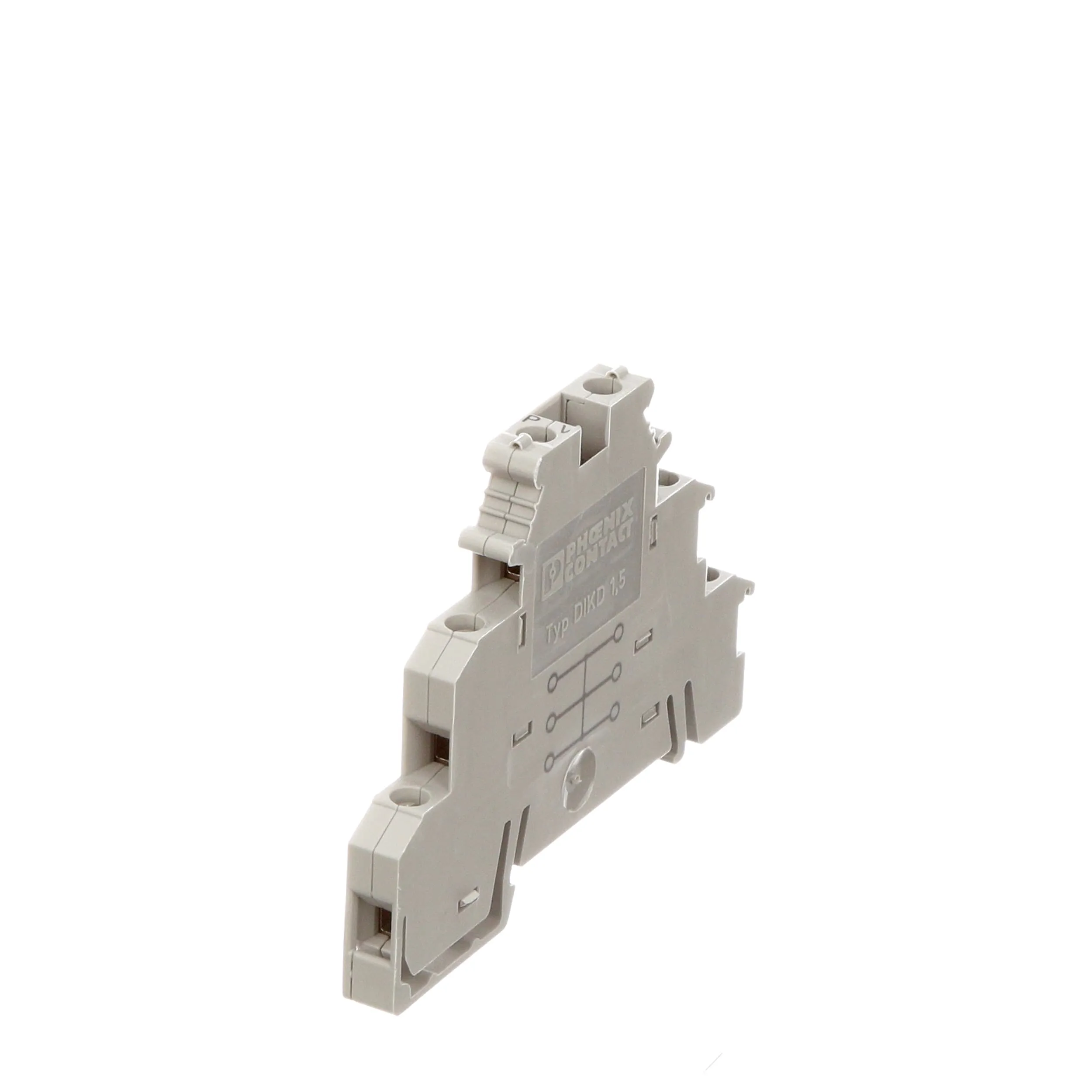

Name: Phoenix Contact 2715092
SKU: 988189

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	DIKD 1 5-PV
Approvals	CSA, UL Recognized, cUL Recognized, EAC, EAC, cULus Recognized
Color	Gray
Family Name	Universal Terminal Block Family
Length	72.5 mm
Maximum Load Current	32 A (in case of a 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Number of Connections	6
Number of Levels	3
Primary Type	Sensor / Actuator Terminal Block
Series
Termination	DIN Rail
UPC Code	4017918061371
Width	6.2 mm

Overview

Phoenix Contact CLIPLINE Complete Modular Terminal Block System: Universal Terminal Block Family | DIK / DIKD Series — Three-level and Three-conductor Initiator Blocks:

The sensor and actuator conductors are wired in terminal boxes in order to reduce wiring costs. The positive and negative connections are grouped so that only the signal lines and one pair of conductors for the power supply need to be wired between the terminal box and the control.

DIK 1,5: The upper level accommodates the feedthrough terminal blocks for the signal line
which can be marked

The two bottom terminal points supply the initiator with potential

The lower terminal points can be bridged using a divisible insertion bridge
DIKD 1,5: The positive and negative potential can be fed into the insertion bridges via this
power terminal

The first initiator can also be connected to this three-conductor feed-through
terminal blockDIKD 1,5-PV: Space-saving potential distributor terminal block

Bridgeable upper level makes potential distribution over more than 6 terminal points possible

The potential distributor terminal block is available with a gray, blue or black insulating housing for clear potential demarcation
