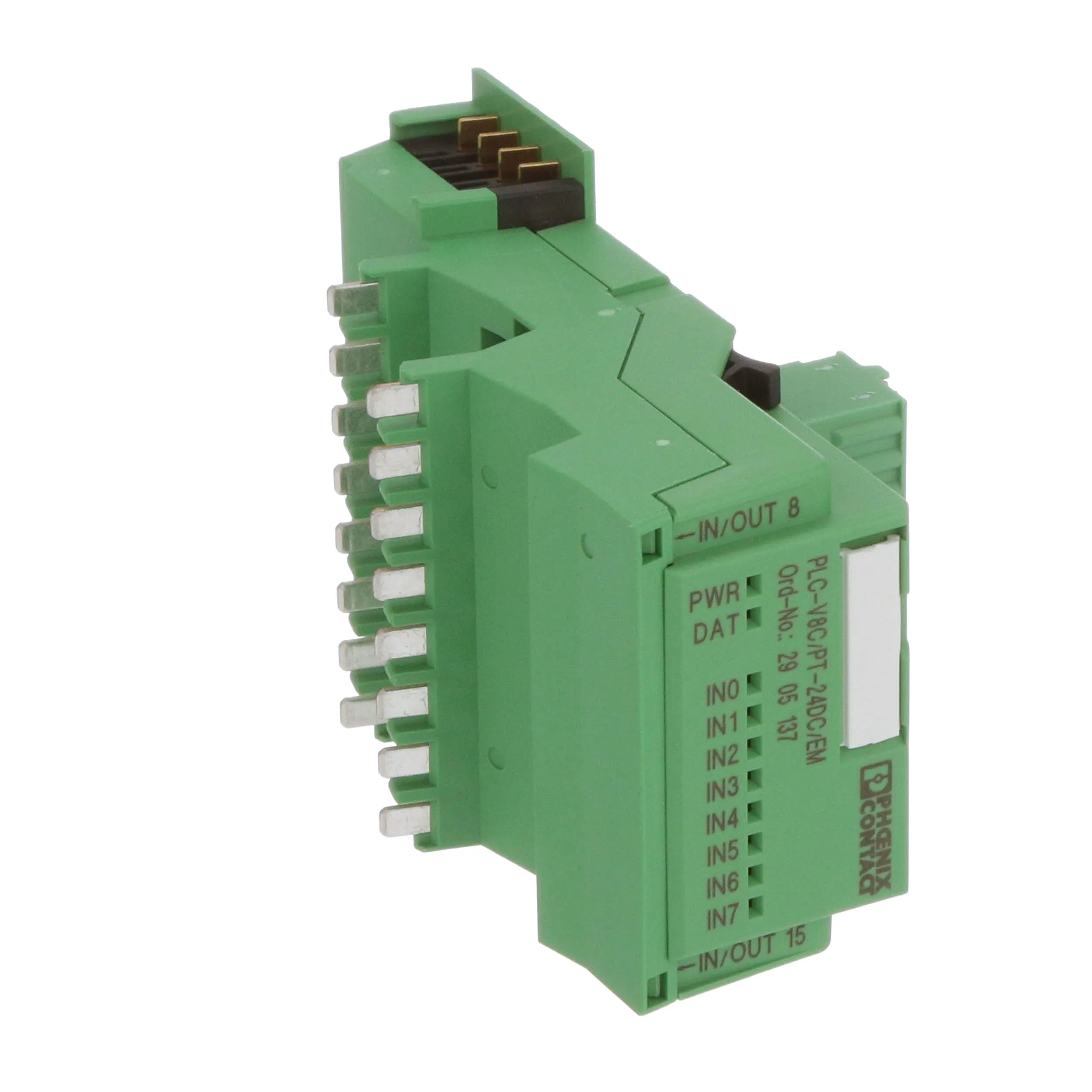

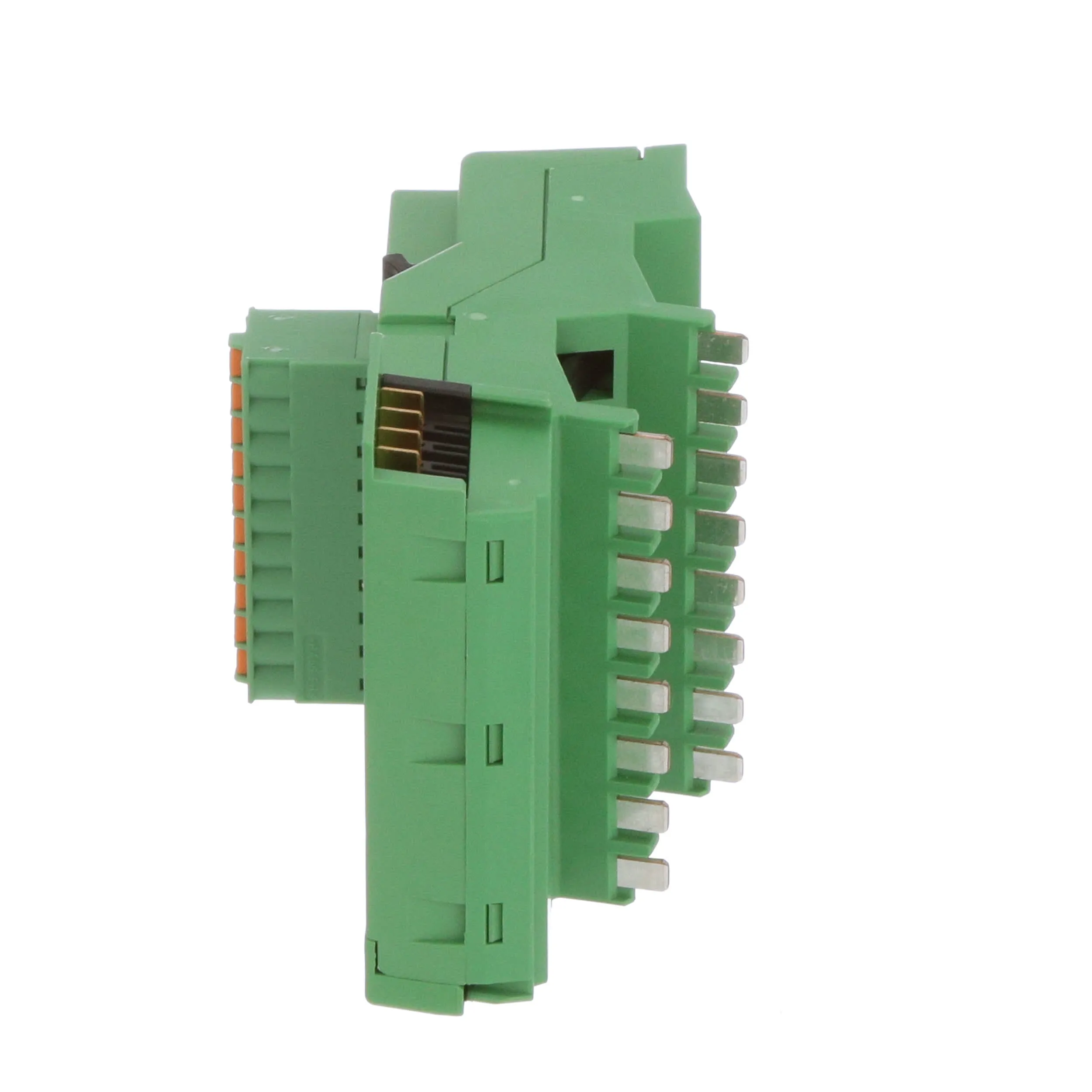

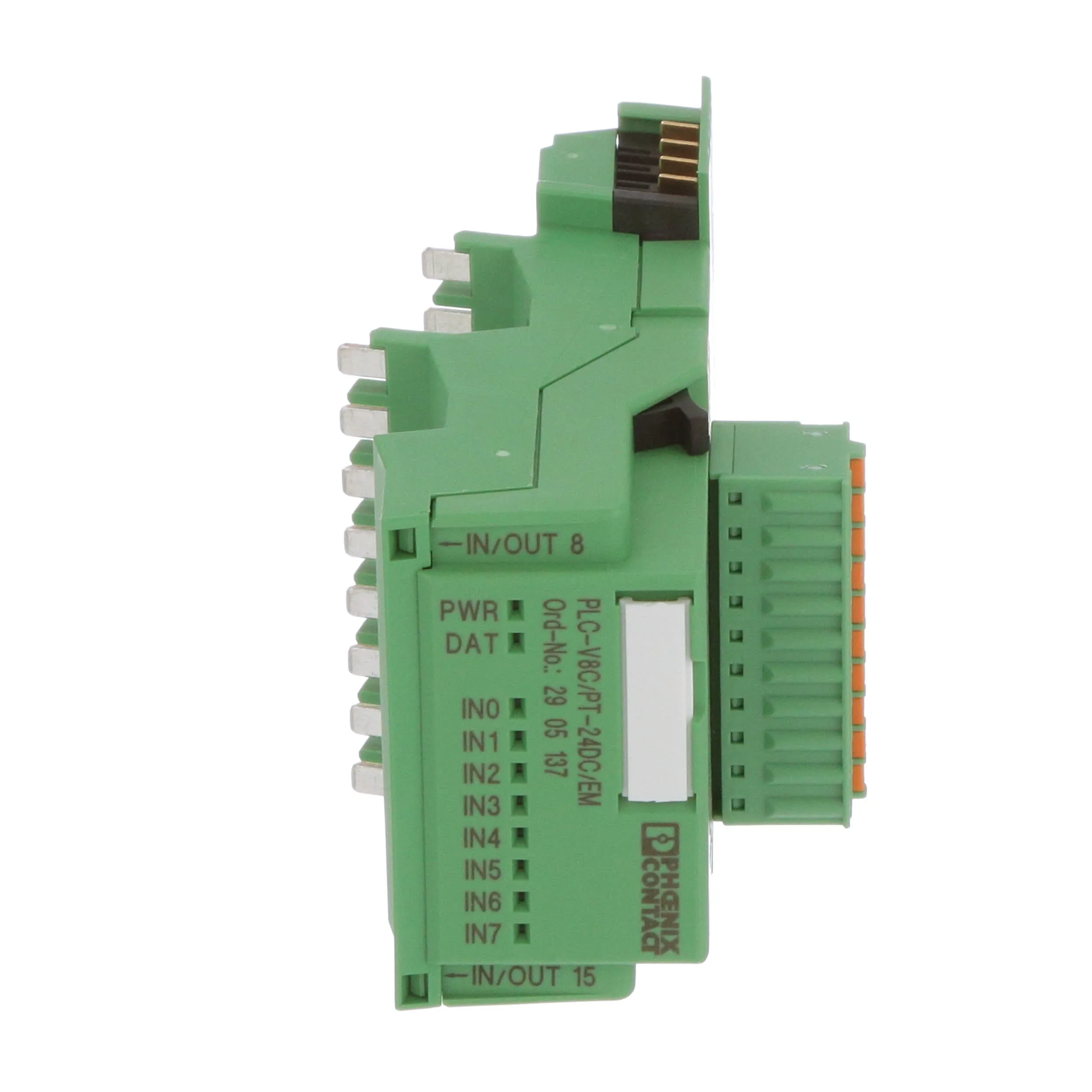

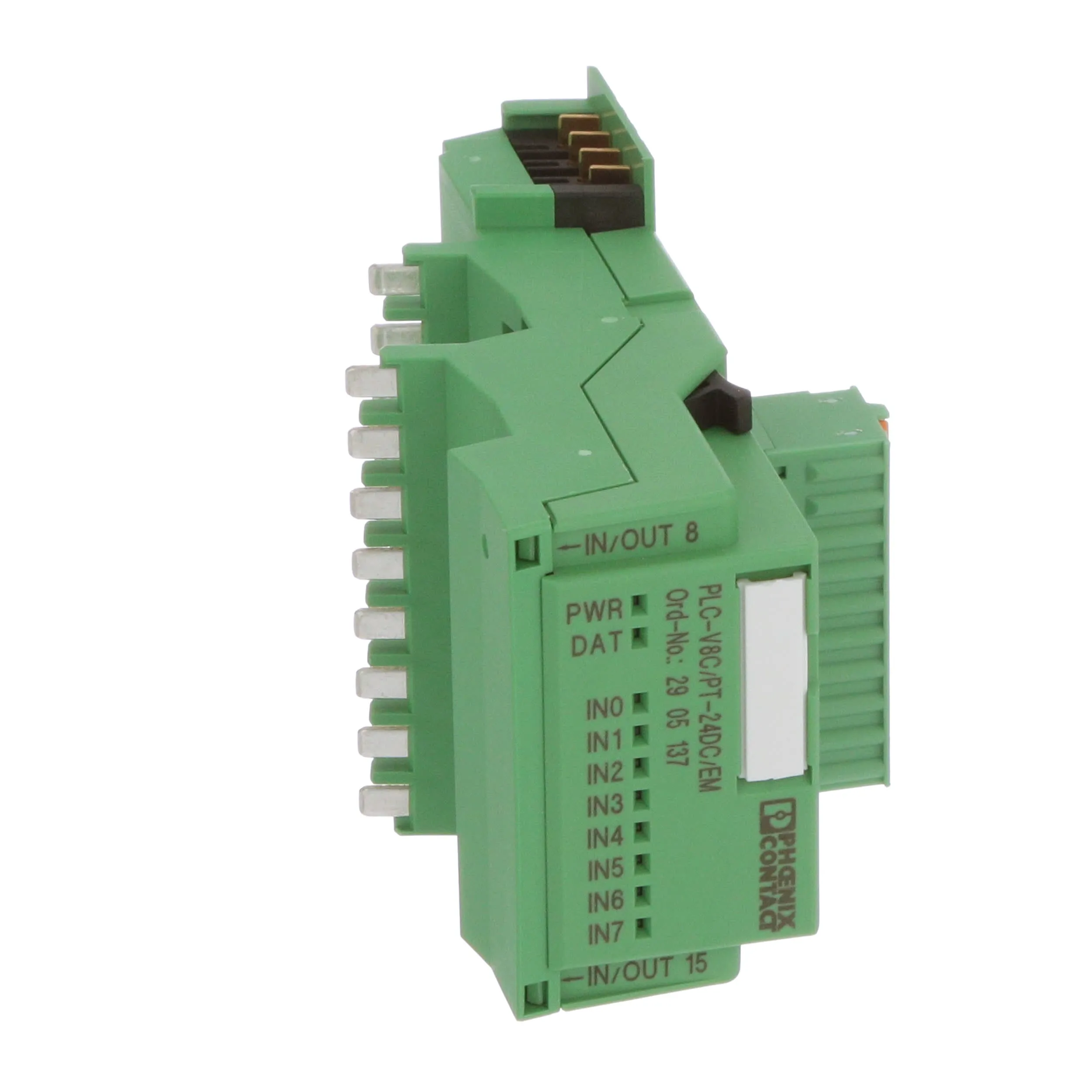

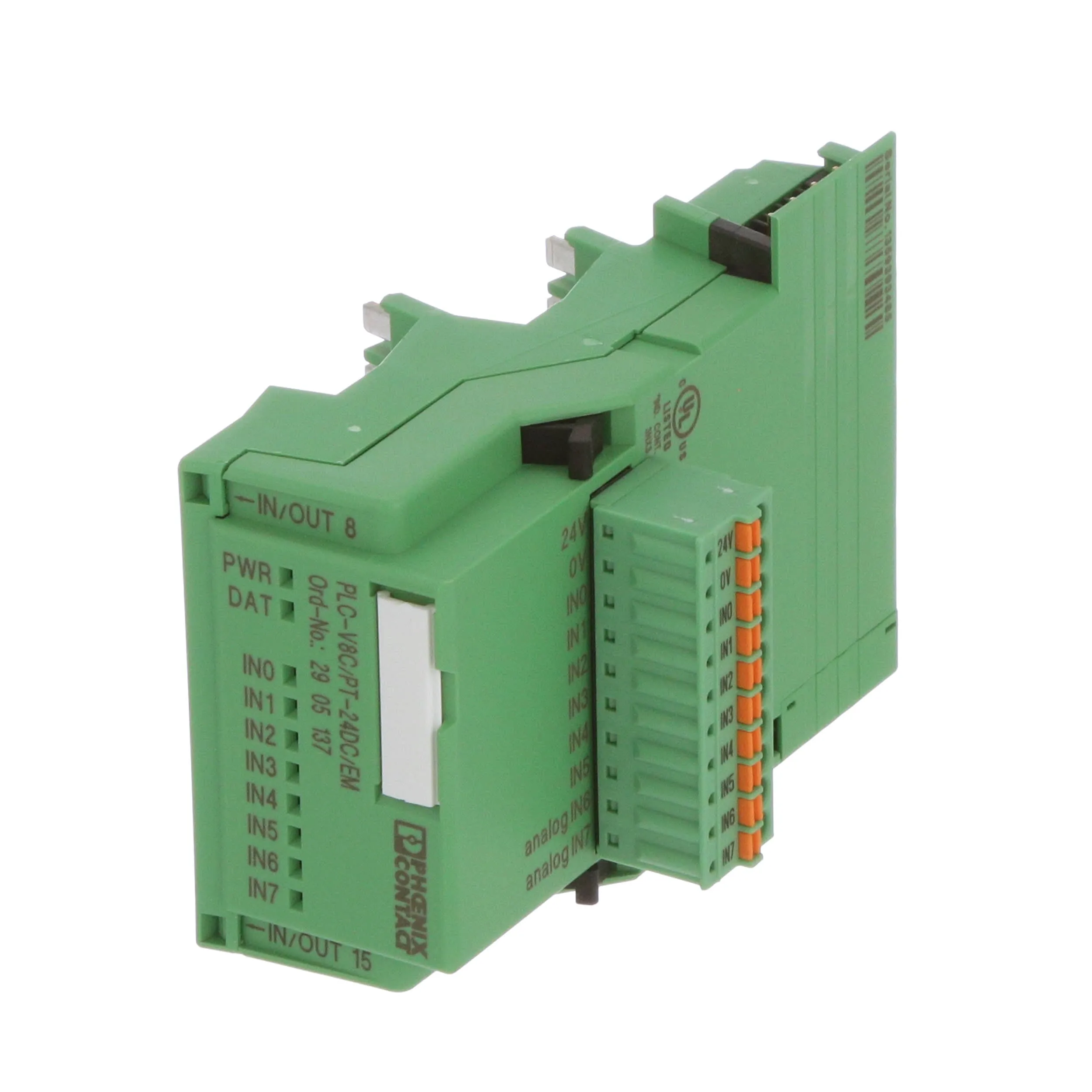

Name: Phoenix Contact 2905137
SKU: 1001213

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	PLC-V8C/PT-24DC/EM
Approvals	UL Listed, cUL Listed, EAC, cULus Listed
Color	This product is transitioning from the current base color of green to gray. During the transition, the manufacturer will ship green product until depleted, followed by gray. The change is purely cosmetic in nature and does not impact the form, fit, function or technical ratings of the product.
Controller Type	I/O
Depth	87 mm
Height	111 mm
Number of Connections	1
Number of Positions	4
Series
Stripping Length	9 mm
UPC Code	4046356919487
Width	50 mm

Overview

Phoenix Contact PLC-INTERFACE Series | Relay System - High Performance Interface Between the Controller and System I/O Devices:

The PLC-INTERFACE Relay System acts as the high performance interface between the controller and system I/O devices. The new electromechanical relay with manual actuation is particularly suited for maintenance and commissioning as it can be operated manually. The PLC-INTERFACE relay system acts as the highperformance interface between the controller and system I/O devices. New variants allow you to isolate and switch signals safely in the potentially explosive areas of Zone 2. The PLC-INTERFACE relay system from Phoenix Contact acts as the high-performance interface between the controller and system I/O devices.

PLC-INTERFACE provides you with a comprehensive range of ultra-narrow, plug-in relays and solid-state relays, plus a complete range of accessories. In addition, PLC sensor/actuator versions, switch modules, and filter series always provide the right interface for special applications. The modular structure opens up a wealth of applications. You can flexibly extend the system, thanks to the wide choice of different modules. In addition to the basic module, extension modules are also available for more complex tasks.

Features:

SPDT and DPDT with 6 A continuous current and HC variants for up to 10 A switching current

Plug-in relays

Various input voltages (12 / 24 V AC/DC, 120 / 230 V AC/DC)

Maximum switching voltage: 250 V AC / DC

Contact nominal load: 250 V AC / 6 A

Relay degree of protection: RTII

Efficient connection to system cabling using V8 adapter

No need for additional modular terminal blocks

Relay modules with safe isolation according to DIN EN 50178 between coil and contact

Space savings of up to 80 %

Functional plug-in bridges

Sensor connected directly to relay module

Can be used in potentially explosive areas of Zone 2

Approval in accordance with IECEx, ATEX and Class 1 Zone 2

Space-saving, thanks to 6.2 mm narrow design

Time-saving potential distribution, thanks to plug-in bridges

Protection against operating errors due to manual operation that is lockable via screwdriver

Quick and error-free connection to the controller via system cabling

Efficient connection to system cabling using V8 adapter

Fulfills requirements of the corrosive gas test ISA G3 and of EN 60068-2-60

Operating functions: AUTO MODE: Relay is operated via on/off signal from the controlling signal source

Operating functions: MANUAL ON: Relay is operated manually with mechanical activation

Screw or Push-in connection

PLC Sensor and PLC Actuator Series:

Enormous savings in terms of time, space, and costs

All connections for sensors and actuators directly on the coupling relay

No additional modular terminal blocks for supply (sensor version) and output (actuator version)

Available with screw, spring-cage or PT connection (same shape)

With plug-in relay (white) or solid-state relay (black)

PLC Universal Series:

Can be used universally as input or output interface

Available with screw, spring-cage or PT connection (same shape)

With plug-in relay (white) or solid-state relay (black)

Connection of sensors/ actuators via modular terminal blocks

Components of the PLC Series - Programmable Logic Relay System:
1) Basic Module - PLC logic processes 16 I/O signals with just one basic module, with an overall width of just 50 mm.
2) Extension Modules - The basic module and the extension module are connected via integrated connectors - no tools required.
3) Memory Module - Save programs or easily copy them to other devices.
4) Relay and Analog Modules - The modular design with the widest variety of relay and analog modules enables channel-specific assembly.
5) PLC Logic App - Easy and quick parameter adjustments and monitoring via app for iOS and Android. Thanks to the app and the corresponding Bluetooth adapter, you can access the process data quickly and wirelessly.
